CHAIN GANG MINI PROGRAMMABLE EFFECTS CONTROLLER

Description

The Chain Gang Mini is the perfect solution for musicians that use only a few effect pedals.
Like its bigger brother name sake, the EDFM Chain Gang Mini Programmable Effects Controller will have the same features but on a smaller scale.

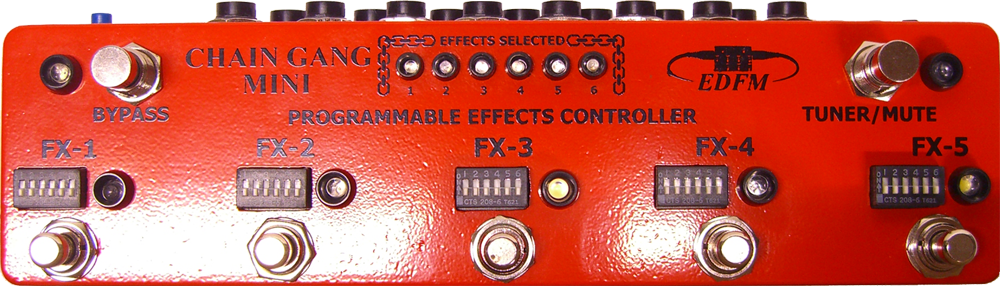

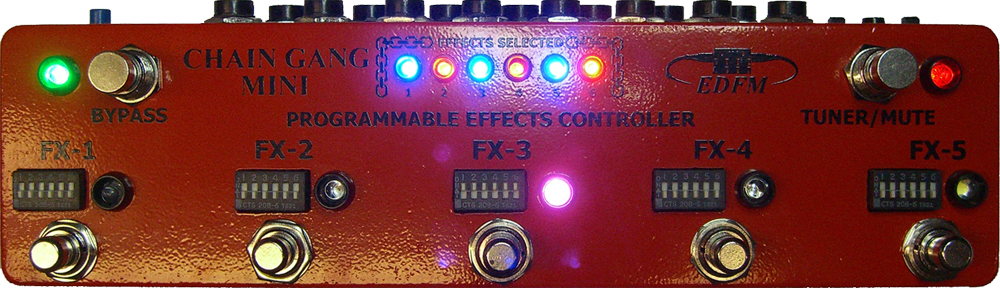

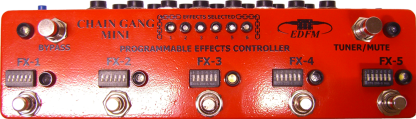

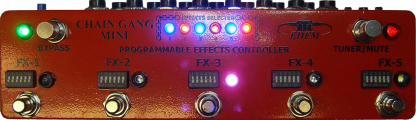

The Chain Gang Mini Programmable Effects Controller has 5 auto-switching programmable banks with their own unique color LED. Programming can be performed at any time. No need to unplug or do a footswitch dance to program, just flip a switch and your done. The 5 banks are auto-switching meaning that when you select a bank any other bank that is on will be disabled automatically. At the top are 6 – 3mm alternating colored (blue & orange) LED’s to indicate which effects are programmed on for that bank. These LED’s can be turned off by depressing a simple push button.

It also has a built-in on/off switchable Buffer to compensate for tone loss due to long cable runs. You say you have effect pedals that just doesn’t sound as good with a buffer, no problem just move the Buffer Select switch to the 3-6 setting and now any effect plugged into the 1-2 send and return jacks will be un-buffered leaving jacks 3-6 buffered.

The MUTE/TUNER footswitch does exactly that, mutes your input signal and routs it to your tuner eliminating your tuner from your live signal path and allow silent tuning.

The BYPASS switch of course bypasses all effects, but if needed you can still add the buffer.

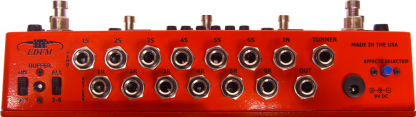

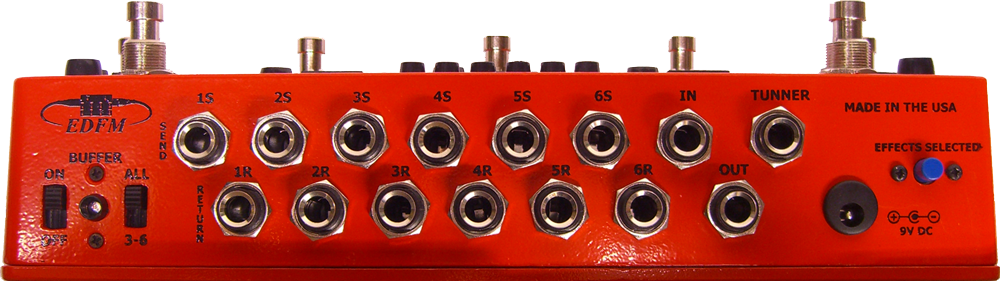

The CHAIN GANG boasts 6 effects input jacks (send & return 6 ea.) for a minimum of 6 effects and is made of heavy-duty die-cast metal housing.

Unit operates on a standard +9volt DC 5.5mm O.D. x 2.1mm I.D. negative tip barrel style power supply (not included). Included is a 13.5″ Y-adapter for connecting to your exciting power supply.

*True Bypass foot switching
*Tuner-Mute Footswitch with a dedicated Tuner jack
*Buffer on/off with selectable signal chain placement.
*Bypass Footswitch bypasses all effects.
*Six send and return effects jacks.
*Five programmable soft touch foot switchable banks.
*Six alternating blue and orange 3mm LED’s indicate which effect-loop is enabled for each bank.
*Smaller footprint size for a friendlier pedalboard placement.
10″ x 2 11/16″ x 2″
*Made of heavy-duty die-cast metal housing.
*Durable powder coated finish.
*Unit operates on a standard +9 volt DC 5.5mm O.D. x 2.1mm I.D. negative tip barrel style power supply (not included). Included is a 13.5″ Y-adapter for connecting to your exciting power supply.
