Description

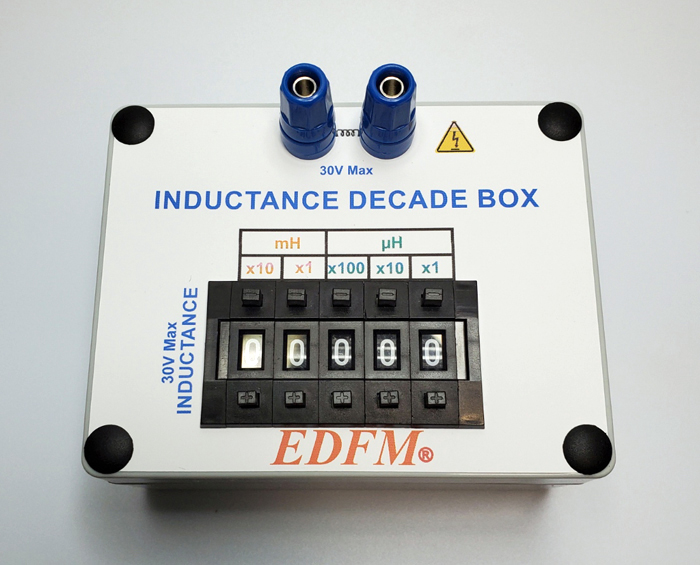

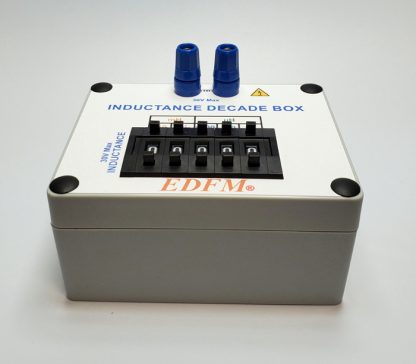

EDFM’s DECADE INDUCTANCE SUBSTITUTION BOX is the perfect affordable solution for designing, prototyping, diagnostics of circuits, engineering and more of your electronic projects. Five quick select pushbutton switches allows fast selection of inductance values.
SPECIFICATIONS
Inductance Ranges: 1µH – 99mH
Internal Inductance: 0.562 nH
Voltage Rating: 30 Volts Max
Max current per decade
Decade | x10 mH | x1 mH | x100 µH | x10 µH | x1 µH |
Max. I | 20 mA | 400 mA | 660 mA | 450 mA | 2.26 A |
Dimensions: 4.53 x 3.54 x 2.17 inches – 115 x 90 x 55 mm
Specs:
: 5 Pushwheel Decade Switches
: Dual Binding Post (blue) w/Top insertion and wire wrap screw down top and through hole
: 20% Power Inductors
: Accuracy 20%
: Waterproof vinyl graphics
MADE In The USA
